BTA Deep Hole Boring Machine

Name: BTA Deep Hole Boring Machine
Export: The United States, India
Availability:

BTA is the deep hole drilling and boring

Hole size: 16-150mm;

Max.depth:10000mm;


We supplied BTA drill machine to many customers in the world. Export to USA, India and Taiwan. Include industries: automobile, gas and oil, injection mould and military.


MACHINE FEATURES
-  Cast iron machine bed
-  Head stock with 3 or 4 jaw chuck
-  Part counter rotation spindle

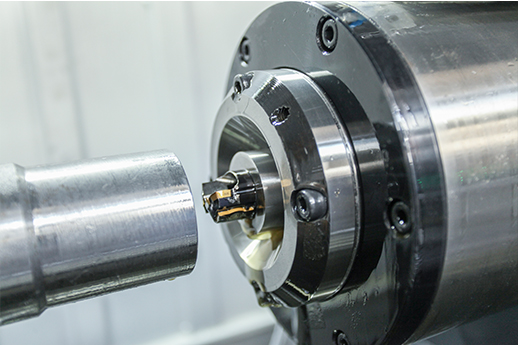

-  Boring head
-  Pressure head with cone clamping
-  Stead rest
-  Vibration damper
-  CNC or mechanical control
-  Oil chiller
-  High pressure coolant system
-  Chips trolley or conveyor
HTT BTA deep hole boring machine is designed with high strength cast iron bed with heavy duty ball screw and precision gear box.

Depending upon customer request and application, we can offer three different configurations:
1)Part counter rotate, tool rotate clockwise,
2)Part fixed, tool rotate clockwise,
3)Part counter rotate, tool fixed.


Control can be mechanical, CNC or PLC.
Tooling including drill tube, boring head, guide pad and cutting insert) is an essential part of BTA deep hole boring machine. HTT have very good relationship with some quality tooling suppliers including Sandvik to allow us to provide a complete deep hole boring solutions to our customer to save you money and time.


Our BTA machines have been widely used by customers in gas and energy, forging , ship building performing solid drilling, counter boring, pull boring and trepanning.
We can custom design to meet your application requirements for any length and bore size.



Technical Data



Machine typeKT50KT100KT200KT320KT500
Drilling   hole dia. (mm)φ16-φ50φ20-φ60φ20-φ100φ30-φ120φ40-φ150
Boring   hole dia. (mm)/φ100φ200φ320φ500
Drilling   depth (mm)3000600080001000010000
CNC   ControlSIEMENS/FANUC
