This machine is primarily for processing inclined holes of a compressor crankshaft.
Its diameter range is 3-10mm and the attainable depth is 200mm-250mm.

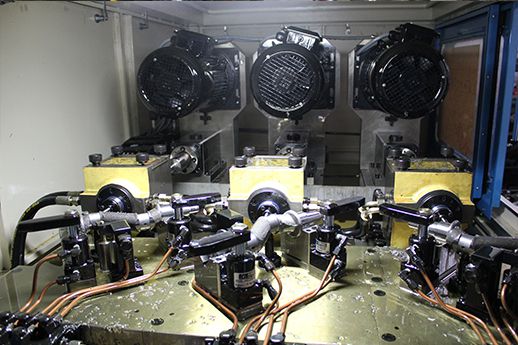

Our machine can drill differently angled holes simultaneously.
Depending on the geometry and location of holes, the HTT team can tailor a multi gun drilling station to accommodate our
customers precise needs.
You will be able to complete your projects within a Lean production environment.
As always, we provide turnkey delivery, installation, production start and customer training.
Technical Data
| Machine type | K4 | K6 | K12 | K16/20 | K25 | K40 |
| Number of spindle | 1/2/4/6 | 1/2/4/6 | 1/2/4/6 | 2001/2/4 | 2001/2/4 | 1 |
| Drilling dia. (mm) | φ0.8-φ4 | φ1.5-φ6 | φ3-φ12 | φ4-φ16/20 | φ6-φ25 | φ12-φ40 |
| Drilling depth (mm) | 300/500 | 300/500 | 500/800 | 500/800 | 800/1200 | 1200/3000 |
| Spindle motor (KW) | 2.4 | 3 | 3 | 4 | 5.5 | 15 |
| Spindle speed (rpm.) | 20000 | 15000 | 8000 | 6000 | 4000 | 2500 |
| Pressure of coolant (MPa) | 14 | 14 | 12 | 10 | 10 | 6 |
| CNC Control | SIEMENS/FANUC |
