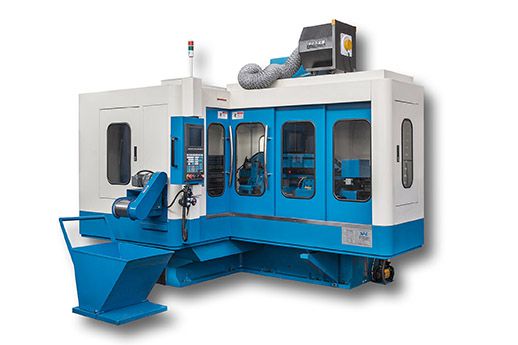

Deep Hole Drilling Machine for Honeycomb Ceramic Substrate Mold

Name: Deep Hole Drilling Machine for Honeycomb Ceramic Substrate Mold
Export: Japan, America, German, Italy, India
Availability:

In order to reduce vehicle emissions adopted by many car manufacturers in clean air technologies, the honeycomb ceramic substrate material has been proven to be the best material.


The honeycomb ceramic substrate is extruded from a mold. The deep hole drills molds have 200 – 600 meshes with holes sizes ranged from 1.3 mm to 1.8 mm. The length to diameter ratio in the mold can be as large as 50. Our high speed spindle can gun drill the extrusion mold with high precision and efficiency. It also ensure the smooth surface finish for ceramic substrate extrusion. We can provide customers both, single spindle and two spindles machines, to meet customer need.

Deep hole drills:
Honeycomb ceramic carrier widely used in diesel engine for filtering PM in exhaust;
Characteristic: big filter surface and stabilization of water absorption

Parameter:

Honeycomb ceramic mould mainly inclouding 200 mesh, 400 mesh and 600 mesh, hole size inclouding 1.3mm/1.5mm/1.8mm; Max. depth: 40mm;

deep hole drilling machine honeycomb ceramic substrate can drilling the mould(Max. diameter:500mm, 600 mesh)

Advantages:
high productivity and good quality, widely using in Honeycomb ceramic mould industry


Technical Data


Machine   typeKB600KB1000KB1300KB1600AKB1600BKB1600HKB2000
Drilling   dia. (mm)φ3-φ25φ3-φ30φ3-φ30
    (opt38)
φ3-φ30
    (opt38)
φ3-φ30
    (opt38)
φ3-φ38φ3-φ30
    φ20-φ65
Table   size (mm)830X6001160X9001500X9001700X10002100X13002300X14502300X1450
X-axis   table cross travel (mm)600100013001600220022002200
Y-axis   drilling unit vertical (mm)60010001000100010001150
    (opt1500)
1200
Z-axis   drilling depth max (mm)600100013001600160016002000
Spindle   speed (rpm.)6000
    (opt8000)
6000
    (opt8000)
6000
    (opt8000)
6000
    (opt8000)
6000
    (opt8000)
60006000
Pressure   of coolant (MPa)1~81~81~81~81~81~81~8
Table   load (kg)8111212141719
Machine   weight (T)7111314161919
CNC   ControlSYNTEC/FANUC/SIEMENS
